Step By Step

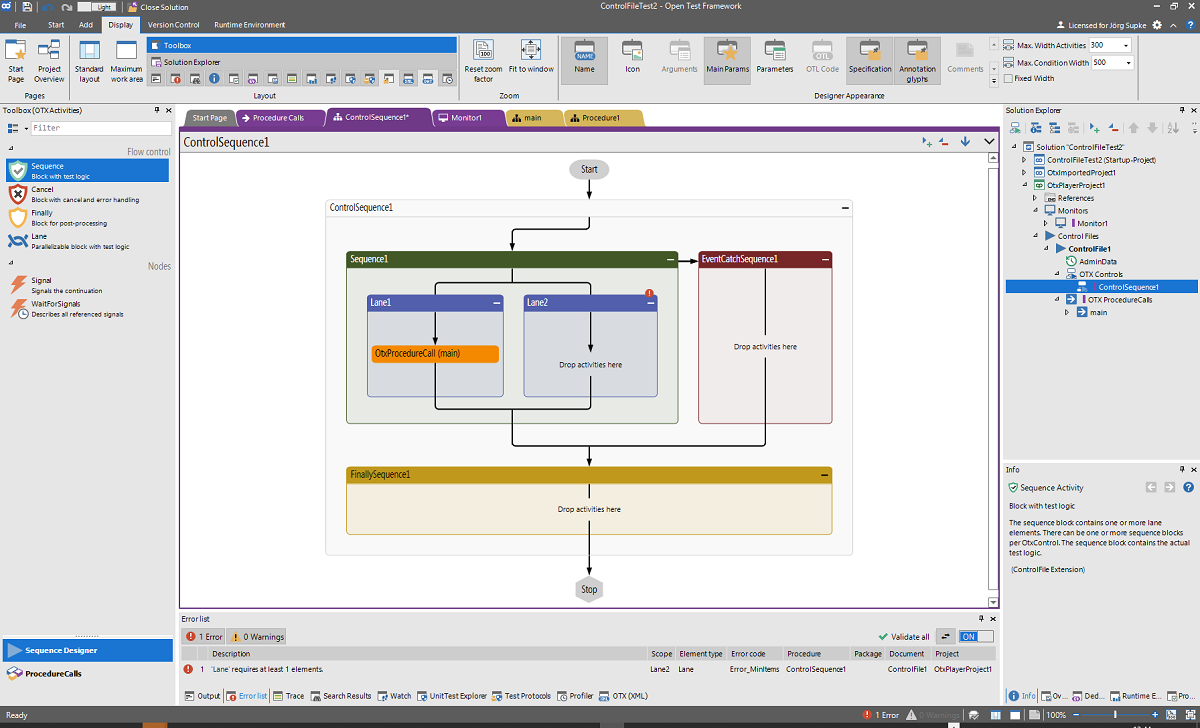

The picture shows the Control Sequence Designer together with the Toolbox and the Solution Explorer. To edit a Control, the following steps are recommended:

Select the Control in the Solution Explorer and open it by double-clicking. If no Control exists yet, then add a new "Control Sequence" using the right mouse button on the "OTX Controls" node.
The Control is displayed as a new tab. Just like with the OTX Designer, activities or OtxProcedureCalls can be dragged from the Toolbox into the designer to the appropriate locations.
Select and parameterize the activities or OtxProcedureCalls.

Control (ControlSequence)

A Player Project can contain zero, one or more Controls. To edit one control, it must be opened in the Sequence Designer. Within the property grid, only the simple elements on the first level can be edited.

Note: Inside the Control Sequence Designer exactly one Control can be edited. The Controls itself must be managed inside the Solution Explorer, see Player Project.

Note: In the table, ConfigFile means that the possible values are fetched from the ConfigFile. If there are no values, then the property cannot be changed. If the current value is not present in the ConfigFile, an error is displayed. Empty values are ignored.

Property	Data Type	Cardinality	ConfigFile	Description
`DisplayName`	`String`	0..1		Readable name of the `Control`.
`Description`	`String`	0..1		Understandable description of the `Control`.
`SequenceType`	`Reference`	0..1	Yes	Target system specific type of the sequence, e.g. `"Series"`, `"Rework"`, "Maintenance and Generic Blocks" to categorize the `Control`. Note: Has no effect at runtime! Note: All values come from the `ConfigFile`.
`LogicalPath`	`Reference`	0..1	Yes	Classification of the `Control` into a group. Category for classifying the `Control` in the development environment or for statistical evaluation of the results of this `Control` in subsequent processes, e.g. `EPS.LWS_Setup`. Note: Has no effect at runtime! Note: All values come from the `ConfigFile`.
`ValidFor`	`LogicalExpression`	0..1	Yes	A Logical Expression that describes under which conditions the `Control` can be executed. If the expression is calculated to `true`, then the `Control` may be executed, otherwise not.
`OnlyForTestPurpose`	`Boolean`	1		If the flag is set to `true`, the `Control` will be executed only if the target system is in `TestMode`.
`MetaData`	`MetaData`	0..n	Yes	`MetaData` contains target system-specific configurations, see MetaData.
`ID`	`String`	1		Unique identifier of the `Control` (`ReadOnly`)
`StartTrigger`	`Reference`	0..n	Yes	List of target system specific event identifier. Note: Each occurrence of one event defined here, starts the execution of the `Control`. Examples: `"location.station3"`, `"vehicle.drivingCycleDetected"`, `"Fire Alarm"`, `"Otp.Monitor1.StartButton"`.
`PauseTrigger`	`Reference`	0..n	Yes	List of target system specific event identifier. Note: Each occurrence of one event defined here, pauses the execution of the `Control`. Examples: `"RollerStation.StoppingCord.Pulled"`, `"Vehicle.SOC.TooLess"`, `"Otp.Monitor1.PauseButton"`.
`ContinueTrigger`	`Reference`	0..n	Yes	List of target system specific event identifier. Note: Each occurrence of one event defined here, continues the execution of the `Control`. Examples: `"RollerStation.StoppingCord.Released"`, `"Otp.Monitor1.ContinueButton"`.

Sequence

The Sequence contains one or more Lane elements. There can be one or more Sequence blocks per Control.

Property	Data Type	Cardinality	ConfigFile	Description
`DisplayName`	`String`	0..1		Readable name of the `Sequence`.
`Description`	`String`	0..1		Understandable description of the `Sequence`.
`Monitor`	`Reference`	0..1	Yes	Reference to a `Monitor`. A target system can can use this property to select a certain window for all user interaction of the complete `Sequence`. Note: Not used in Open Test Player, because the OTP supports multiple panels inside one monitor! A Monitor.Panel can be referenced inside the `lane`. Note: All values come from the `ConfigFile`.
`ID`	`String`	1		Unique identifier of the `Sequence` (`ReadOnly`)

Lane

The Lane contains the executable part of the Control.

Note: All Lane blocks of a Sequence are executed in parallel.

Note: A RuntimeManager is created for each Lane at the OTX Runtime API.

Property	Data Type	Cardinality	ConfigFile	Description
`DisplayName`	`String`	0..1		Readable name of the `Sequence`.
`Description`	`String`	0..1		Understandable description of the `Sequence`.
`Panel`	`Reference`	0..1	Yes	Reference to a `Panel` inside a `Monitor`. A target system can can use this property to select a certain panel for all user interaction related to that `Lane`. Note: All values come from the `ConfigFile`.
`ID`	`String`	1		Unique identifier of the `Sequence` (`ReadOnly`)

ProcedureCall (Test Step)

The call of a OtxProcedureCall is called a test step. A Lane can contain any number of test steps, which are executed sequentially.

Note: At runtime for each OtxProcedureCall the Execute method of the related RuntimeManager is called at the OTX Runtime API.

Property	Data Type	Cardinality	ConfigFile	Description
`Procedure`	`Reference`	1		Reference of the `OtxProcedureCall` to be executed.
`OnlyForTestPurpose`	`Boolean`	0..1		If the flag is set to `true`, the `OtxProcedureCall` will be executed only if the target system is in `TestMode`.
`resultRelevant`	`Boolean`	1		Indicates if the `Result` of the `OtxProcedureCall` execution is relevant for the overall `Result` of the `Control`. If set to `false`, the overall `Result` is not affected by the execution of this `OtxProcedureCall`, see Result Evaluation.
`ResultMandatory`	`Boolean`	0..1		Indicates if the `OtxProcedureCall` MUST be executed. If the value is set to `true` and the `OtxProcedureCall` is not executed, the result is handled as `Failed`, see Result Evaluation. Note: The Flag will be only evaluated in case of `ResultRelevant` is set to `true`.
`DisplayName`	`String`	0..1		Readable name of the `OtxProcedureCall`.
`ID`	`String`	1		Unique identifier of the `Sequence` (`ReadOnly`)
`ExecuteOnlyByPreResults.Type`	`Enum`	0..1	Yes	Before the `OtxProcedureCall` is executed, it is checked whether the `Expression` parameterized here is fulfilled or not. If the `Expression` returns `false`, the `OtxProcedureCall` will not be executed. Type: To create the `Expression` you have to choose one of the following types of `OtxProcedureCall:` - `ProcedureCall` - `OtxProcedureCall` referenced in the `ConfigFile`. - `SequenceObject` - A `OtxProcedureCall` within the same `control`. Note: A table is maintained at runtime which contains the results of all executed `OtxProcedureCall`, see Result Evaluation. Note: The table is valid at runtime as long as the same PPX is loaded.
`ExecuteOnlyByPreResults.Expression`	`LogicalExpression`	0..1	Yes	Contains the `Expression` fro `ExecuteOnlyByPreResults`. The expression can be edited inside the `ExpressionEditor`.
`RetryCountOnFailure`	`Integer`	0..1		Retry counter of `OtxProcedureCall`. Number of retries in failed case (counting from first failure). Note: In case retry count is reached and `AbortOnFailure` (see below) is set to `false`, the execution of the `Control` is continued.
`AbortOnFailure`	`Boolean`	0..1		If `true`, the execution of the `Control` shall be stopped, if the `OtxProcedureCall` execution was not successful (`NOK`) AND after the specified number of retries, see `RetryCountOnFailure`. If `false` the execution of the `Control` will be continued. Note: The problem will be stored in the `ResultFile`.
`CatchIdRef`	`Reference`	0..1		Reference of `Catch` block. If `AbortOnFailure` is `true` the execution continues in failure case with the specified `Catch` block. In case no `Catch` block is specified, the `Finally` block will be executed, if available. Note: The `Cancel` block must exist within the `Control`.

Cancel

The Cancel block is structured like a Sequence but with an additional list of CancelTrigger elements. There can be none, one or more Cancel blocks per Control. A Cancel block can be called in two ways:

In the event of an Error of an OtxProcedureCall
This is done via OnFailure.CatchIdRef, which contains the ID of the Cancel block to be called.
When triggering a Trigger
If a Trigger is called, the running Sequence is stopped. A procedure that has already started is stopped. It then switches to the first Cancel block, which references the Trigger. Subsequent Cancel blocks are ignored.

Note: A Cancel block has the same properties like a Sequence plus the following properties.

Property	Data Type	Cardinality	ConfigFile	Description
`Trigger`	`Reference`	0..n	Yes	List of target system specific `Trigger` that cause the execution of the `Catch` block, z.B. `"OtpStopAll"`, `"EmergencyStop"`. Note: Corresponds to the stop button in Open Test Player. Note: All values come from the `ConfigFile`.

Finally

The optional Finally block is structured like a Sequence block. There can be no or one Finally block per Control. If a Finally block is defined, it is always called after the end of the Sequence or the Cancel block.

Note: A Finally block has the same properties like a Sequence but without the ID.

Signal

A Signal element signals one or more WaitForSignals that execution can continue.

Property	Data Type	Cardinality	Description
`Name`	`String`	1	Unique name of the `Signal`.
`DisplayName`	`String`	0..1	Readable name of the `Signal`.
`ID`	`String`	1	Unique identifier of the `Signal` (`ReadOnly`)

WaitForSignals

A WaitForSignal element can wait for one or more Signal elements. Execution continues as soon as all referenced Signals reach the "Signaled" state.

Property	Data Type	Cardinality	Description
`Signals`	`Reference`	1..n	List of one ore more referenced `Signals` (via `Name`)
`DisplayName`	`String`	0..1	Readable name of the `WaitForSignals`.
`ID`	`String`	1	Unique identifier of the `WaitForSignals` (`ReadOnly`)
